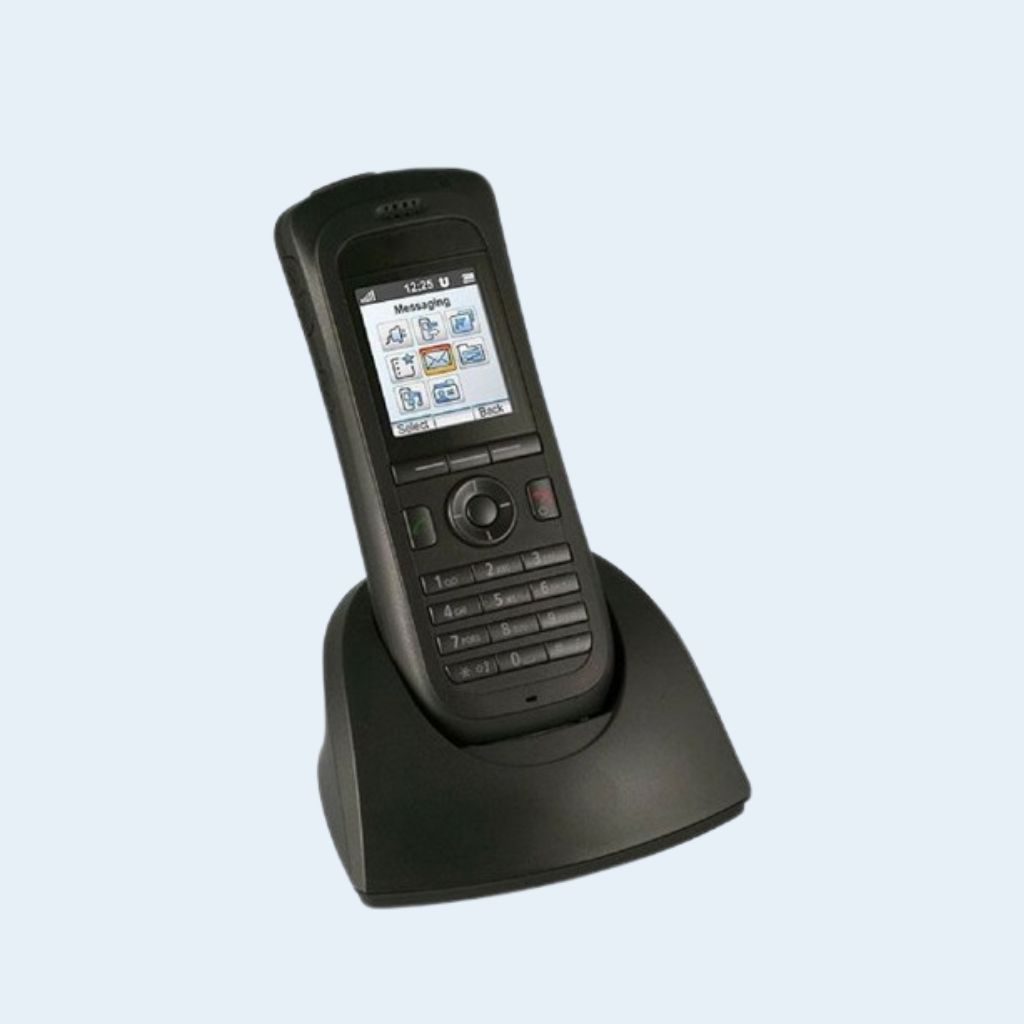

OpenStage WL3

The OpenStage WL3 telephones are an advance variant of telephones for mobile workplaces that use WLAN technology for transmission. These telephones can be deployed in environments with the appropriate SIP platforms and use WLAN infrastructure which supports the dominant infrastructure standards IEEE 802.11a/b/g/n. In addition to the predecessor product the OpenStage WL3 supports now not only wireless telephony, but also messaging and alarming as options.

The OpenStage WL3 family consists of the handsets OpenStage WL3 and OpenStage WL3 Plus , the tools Portable Device Manager (PDM) and Wireless Service Gateway (WSG) ,different chargers and accessories Communication with the platforms is enabled through SIP.

The OpenStage WL3 handset family consists of two telephone models the OpenStage WL3 is the entry telephone for VoWLAN telephony,
an additional message license can be applied to this telephone to benefit from the advanced messaging functionality at the top of the product offering stands the OpenStage WL3 Plus, it offers not only VoWLAN telephony, but also messaging and personal alarm functionality.

12 dial keys (3×4): 0-9, # and ,3 Soft keys for dynamic feature access, Off-hook key, On-hook and Power On/Off on the same key, Five way navigation key, Sound off/Mute side key, Volume button up/down side key, Multifunction button at the top, Hot keys (0, 2 – 9) for fast feature access

Display TFT display with multiple colors with high resolution 65,000 colors, 176 × 220 pixel LCD white LED backlighting

Display languages Multi Language User Interface in 18 languages, those are Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovak, Spanish, Swedish and Turkish + 1 customizable language

Connector

Multi-purpose connector for battery charging, software download and configuration
Headset connector: 2.5 mm cinch connector
Phonebook options

Local Phonebook Maximum 200 entries
Selectable ring tones per contact
Company Phonebook
Maximum 1.000 entries
Central Phonebook
Access to LDAP (WSG required)
Telephony
Indication 14 ring signals, flashing LED and Silent Alarm (vibration)
Call list storage capacity 25 calls (call received, dialed and missed) with time stamp
Voice codecs: G.711 A-law (EU), G.711 u-law (US), G.729, G.729A, G.722
SIP registration to a SIP proxy/registrar
Messaging

Interactive messaging (telephone user can reply messages)
Colored messaging to prioritize messages
Maximum message length 160 characters sent from OpenStage WL3
Storage capacity 30 received/sent messages
Alarm
Radio Specification
Protocols
SIP Survivability Feature
WLAN
Quality of Service (QoS)
Supported WLAN networks
WLAN- Security
WLAN- Roaming enhancement
Enclosure Protection

Headset Connector
Accessories

Additional Information:

• Delivery Time: Within seven working days
• Packaging Details: Boxed – New
